Model NO.: CLW
Use: Burnishing
Cleaning Process: Acid Claening\Pickling
Condition: New
Model No.: Clw
Engine: 95HP 120HP 140HP 170HP 190HP 210HP
Color: All Color
Clearning Type: Dry
Volume of Tank: 5cbm,15cbm,30cbm
Process: Cold Water Cleaning
Dustbin Material: Stainless
Hydraulic System: Import Originally
Sweeping Width: 3000mm
Market: All The World
Trademark: CLW-Group
Transport Package: Nude and Waxed by Bulk Cargo Ship or RO-RO Ship
Specification: 5995x1880x2650mm
Origin: China
Model NO.: CLW
Use: Burnishing
Cleaning Process: Acid Claening\Pickling
Condition: New
Model No.: Clw
Engine: 95HP 120HP 140HP 170HP 190HP 210HP
Color: All Color
Clearning Type: Dry
Volume of Tank: 5cbm,15cbm,30cbm
Process: Cold Water Cleaning
Dustbin Material: Stainless
Hydraulic System: Import Originally
Sweeping Width: 3000mm
Market: All The World
Trademark: CLW-Group
Transport Package: Nude and Waxed by Bulk Cargo Ship or RO-RO Ship
Specification: 5995x1880x2650mm
Origin: China
Manufacture Quality New Wet Type Sanitation Street Sweeper TruckProduct Information
CLW pure suction type sweeping vehicle (vacuum cleaner) adopts the vacuum suction principle and consists of a dust collection system, a dust collection box, a secondary dust collection box, a dust recovery system, and a walking system. It has a wide range of dust collection. (Particles with less than 50 mm particle size and dust), high net absorption rate (95%), no water storage, no watering, no brushing, no secondary dust, and high work efficiency
Great Vacuum Cleaner, CLW Made
(1) The structure is simple and can be operated through the control panel in the cab.
(2) No secondary dust. Pure suction operation method, with a patented efficient filtration system.
(3) Low cost of use.The maintenance cost is lower. Compared with manual cleaning, it can save 150,000 yuan per year. Compared with traditional road sweepers, it can save 60,000 yuan per year.
(4) The dust removal effect is good. The garbage collected in the box is dusted several times, and separation of particles and dust can be achieved through multiple stages such as gravity dust reduction, filtration, dust removal, and the like, so as to achieve real suction retention and good dedusting effect.
(5) Wide application range. In addition to city streets and highways, it is also suitable for ore wharfs, cement plants, material yards, open storage, coal plants, steel mills and non-ferrous metal smelters that are prone to generate dust pollution.
Packaging&Shipping:
Delivery days :7-10days
Shipping : naked waxing coat ;small one into 20` GP or 40` GP ,big type can be carried by bulk carriers or ro-ro ship or you pick
Payment terms :30% depoisite T/T
Our company offer Transportation insurance for customer. To ensure customer's prdocts arrival at the destination new and safe.
It can be assembled and disassembled
The Detail Pictures
The Specific Parameter
| 4x2 ISUZUÂ 5 CBM Dry Function Road Vaccum Truck | ||||
| Model No. | NKR77LLPACJAY | Axles | 2 | |
| G.V.W(Kg) | 7300 | Tank volume(m3) | 5 | |
| Curb weight(Kg) | 3170 | Overall dimension (mm) | 5995x1880x2650 | |
| Rated weight(Kg) | 4000 | Axles Load(Kg) | 2500/4800 | |
| Emission Standard | GB17691-2005 Euro III | Front/rear suspension (mm) | 1015/1620 | |
| Approach/departure angle (°) | 24/20 | Front/rear Tread(mm) | 1504/1425 | |
| Wheelbase(mm) | 3360 | Max speed(Km/h) | 95 | |
| Leaf of springs | 8/6+5 | Tire | 7.50-15,7.50R15,7.00-16,7.00R16 | |
| Engine Model | Manufacture | Displacement(ML) | Rated Power(Kw) | |
| 4KH1-TC | ISUZU | 2999 | 96 | |
| Chassis model | NKR77LLPACJAY | |||
| Other data | Effective tank volumn(m3) | 5.25 | Side protective device material | Q235 |
| Density(kg/m3) | 800 | Side&Rear connection type | Â bolt | |
| Tanks size (diameter straight long x) (mm)Â | 3380 x 3380 | Rear protective section size(WxH)mm | 60x100 | |
| Terrain clearance(mm) | 450 | Rating rotate speed(r/m) | 1400 | |
| min rotate speed(r/m) | 800 | Max suction lift(m) | >8 | |
| vacuum(mmHg) | 500 | Time for full suction(min) | <5 | |
Our Services:
1.One year quality warranty for key parts such as axles, engine, transmission;
2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficiency after-sales service;
4. Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.
FAQ:
1.Q: Are you manufacturer or trading company?
A: We are direct manufacturer and are the well-known Special Purpose Truck manufacturer in China, our factory is located in South Suburb ChengLi Automobile Industry Park, Suizhou City, Hubei Province, it is very close to Wuhan City.
2. Q:How many is your min Order Quantity
A: One unit or one sets;
3. Q: What is your payment term?
A: 30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;
4. Q: How long is the specified delivery date from the date of order?
A: Usually it is 7-30 days, specified delivery date will depend on the detailed request.
5 Q: Contact Information?
A: For any question or request, please contact with me freely according to the following information:
Contact:
Mrs. Eunice Jiang
Sales Representative
Chengli Special Automobile Co.,Ltd
Factory: Chengli Automobile Industry Park, Suizhou, Hubei, China
Office: Room 3102, 7th Building, NO. 299 Huaihai Road, Wuhen, China
Tel&Fax: +86- 27- 83796298
Mobile: +86- 136 7014 4950
Â
Customised Truck &Â Trailer Solutions to Meet Your Requirements
 Manufacture Quality New Wet Type Sanitation Street Sweeper Truck
Product Information
CLW pure suction type sweeping vehicle (vacuum cleaner) adopts the vacuum suction principle and consists of a dust collection system, a dust collection box, a secondary dust collection box, a dust recovery system, and a walking system. It has a wide range of dust collection. (Particles with less than 50 mm particle size and dust), high net absorption rate (95%), no water storage, no watering, no brushing, no secondary dust, and high work efficiency
Great Vacuum Cleaner, CLW Made
(1) The structure is simple and can be operated through the control panel in the cab.
(2) No secondary dust. Pure suction operation method, with a patented efficient filtration system.
(3) Low cost of use.The maintenance cost is lower. Compared with manual cleaning, it can save 150,000 yuan per year. Compared with traditional road sweepers, it can save 60,000 yuan per year.
(4) The dust removal effect is good. The garbage collected in the box is dusted several times, and separation of particles and dust can be achieved through multiple stages such as gravity dust reduction, filtration, dust removal, and the like, so as to achieve real suction retention and good dedusting effect.
(5) Wide application range. In addition to city streets and highways, it is also suitable for ore wharfs, cement plants, material yards, open storage, coal plants, steel mills and non-ferrous metal smelters that are prone to generate dust pollution.
Packaging&Shipping:
Delivery days :7-10days
Shipping : naked waxing coat ;small one into 20` GP or 40` GP ,big type can be carried by bulk carriers or ro-ro ship or you pick
Payment terms :30% depoisite T/T
Our company offer Transportation insurance for customer. To ensure customer's prdocts arrival at the destination new and safe.
It can be assembled and disassembled
The Detail Pictures
The Specific Parameter
| 4x2 ISUZUÂ 5 CBM Dry Function Road Vaccum Truck | ||||
| Model No. | NKR77LLPACJAY | Axles | 2 | |
| G.V.W(Kg) | 7300 | Tank volume(m3) | 5 | |
| Curb weight(Kg) | 3170 | Overall dimension (mm) | 5995x1880x2650 | |
| Rated weight(Kg) | 4000 | Axles Load(Kg) | 2500/4800 | |
| Emission Standard | GB17691-2005 Euro III | Front/rear suspension (mm) | 1015/1620 | |
| Approach/departure angle (°) | 24/20 | Front/rear Tread(mm) | 1504/1425 | |
| Wheelbase(mm) | 3360 | Max speed(Km/h) | 95 | |
| Leaf of springs | 8/6+5 | Tire | 7.50-15,7.50R15,7.00-16,7.00R16 | |
| Engine Model | Manufacture | Displacement(ML) | Rated Power(Kw) | |
| 4KH1-TC | ISUZU | 2999 | 96 | |
| Chassis model | NKR77LLPACJAY | |||
| Other data | Effective tank volumn(m3) | 5.25 | Side protective device material | Q235 |
| Density(kg/m3) | 800 | Side&Rear connection type | Â bolt | |
| Tanks size (diameter straight long x) (mm)Â | 3380 x 3380 | Rear protective section size(WxH)mm | 60x100 | |
| Terrain clearance(mm) | 450 | Rating rotate speed(r/m) | 1400 | |
| min rotate speed(r/m) | 800 | Max suction lift(m) | >8 | |
| vacuum(mmHg) | 500 | Time for full suction(min) | <5 | |
Our Services:
1.One year quality warranty for key parts such as axles, engine, transmission;
2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficiency after-sales service;
4. Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.
FAQ:
1.Q: Are you manufacturer or trading company?
A: We are direct manufacturer and are the well-known Special Purpose Truck manufacturer in China, our factory is located in South Suburb ChengLi Automobile Industry Park, Suizhou City, Hubei Province, it is very close to Wuhan City.
2. Q:How many is your min Order Quantity
A: One unit or one sets;
3. Q: What is your payment term?
A: 30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;
4. Q: How long is the specified delivery date from the date of order?
A: Usually it is 7-30 days, specified delivery date will depend on the detailed request.
5 Q: Contact Information?
A: For any question or request, please contact with me freely according to the following information:
Contact:
Mrs. Eunice Jiang
Sales Representative
Chengli Special Automobile Co.,Ltd
Factory: Chengli Automobile Industry Park, Suizhou, Hubei, China
Office: Room 3102, 7th Building, NO. 299 Huaihai Road, Wuhen, China
Tel&Fax: +86- 27- 83796298
Mobile: +86- 136 7014 4950
Â
Customised Truck &Â Trailer Solutions to Meet Your Requirements
Â
Application Function: measurement for oxygen, crystallization for measuring carbon content, measuring low carbon content under the carbon oxygen balance principle,calculation and measurement of acid soluble aluminum
Molten Iron Sampler is made of fiber which is high quality and high temperature resistance. It is dedicated to collect metal liquid from furnace or ladle for chemical analysis. The sampler could be resistant to extreme cold and hot and there will be no cracks, which means that it can be used repeatedly

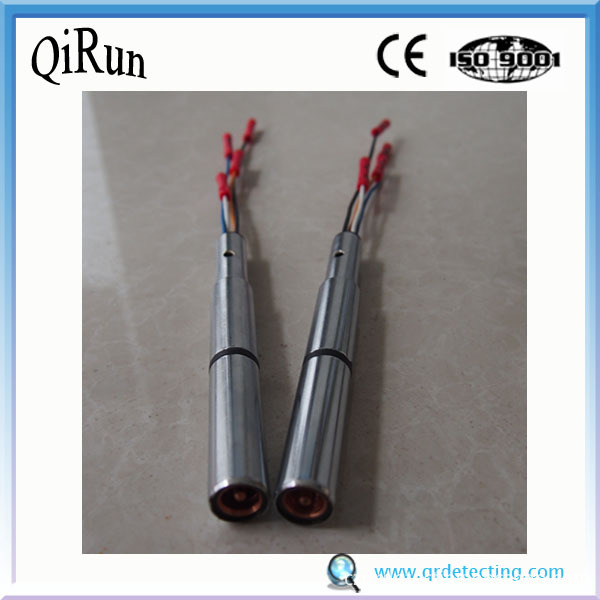

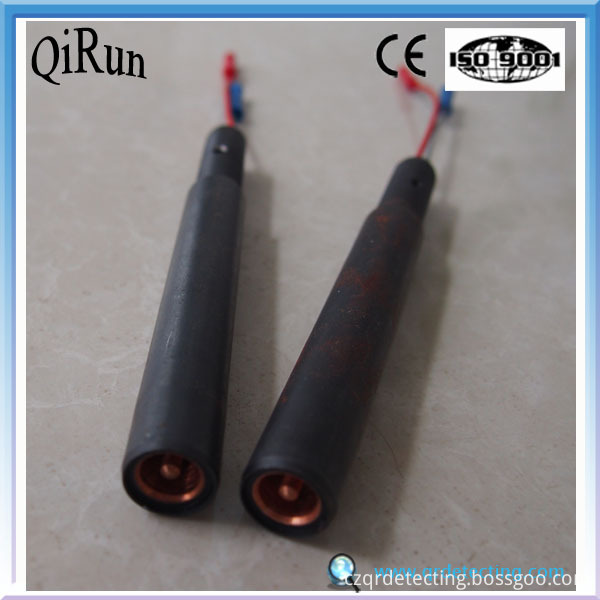

Temperature Connector Block,Expendable Thermocouple Connector Block,Thermocouple Connector,Steel Temperature Connector Block
